Fogale Sensors Introduces SENSKIN Modular: Expanding the SENSKIN Family with a Flexible Retrofit Solution

Two Complementary Solutions for Different Integration Needs

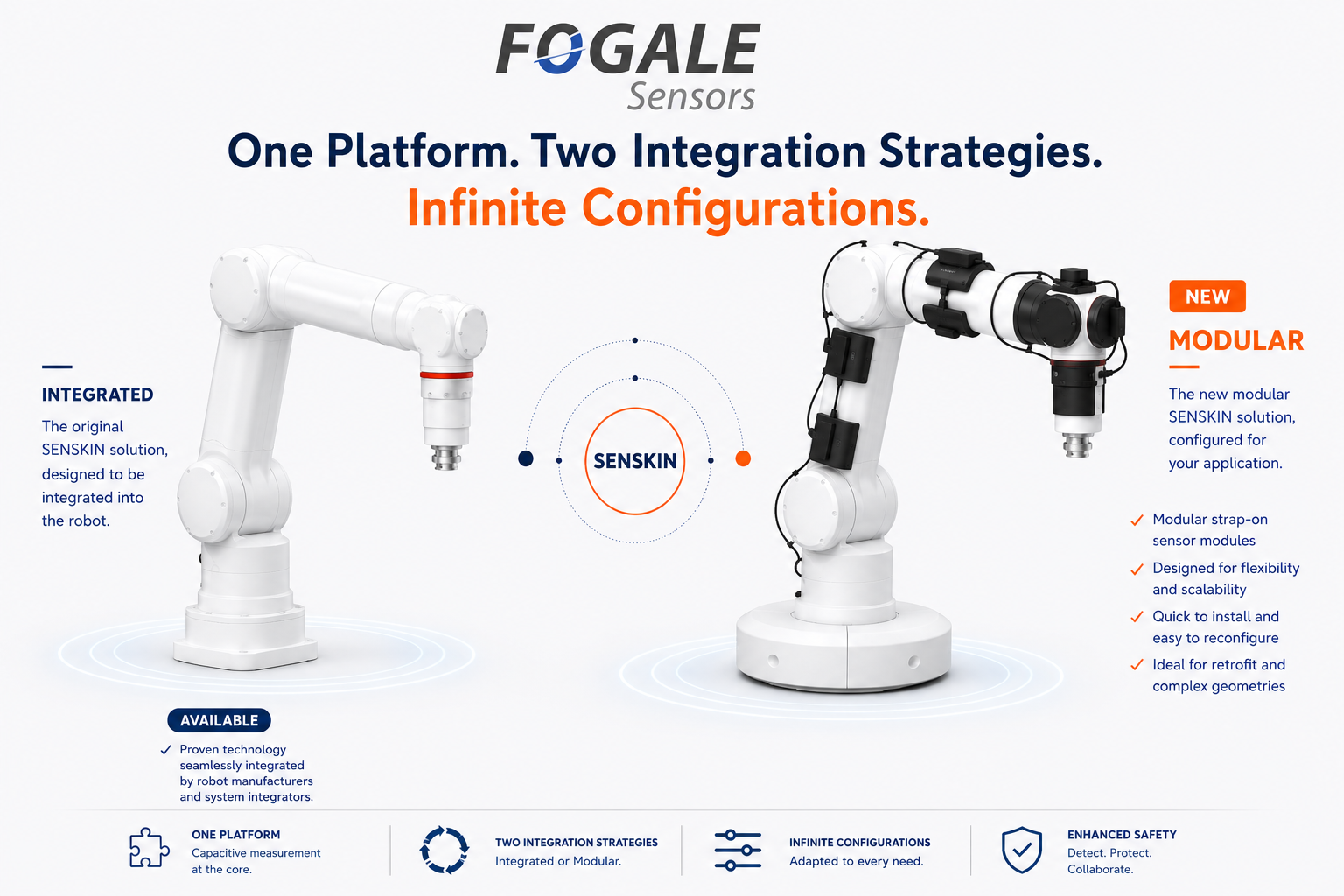

The SENSKIN family now offers two integration approaches.

SENSKIN Integrated is designed for new robot developments. Fully embedded beneath the robot covers, it provides invisible integration, custom sensor geometries and full-body sensing capabilities developed in close collaboration with robot manufacturers.

SENSKIN Modular is a scalable retrofit platform that enables existing robots to be equipped with embedded adaptive safety while preserving robot mobility, payload, accessibility and overall performance.

Its modular architecture can be deployed progressively according to the required level of protection:

Level 1 – Touch Detection

• SENSKIN Ring installed around the robot base
• Contact detection for immediate physical interaction

Level 2 – Proximity Awareness

• Ring combined with 1 to 16 strap-on sensing modules
• Up to 128 sensing elements (16 × 8)
• Scalable protection adapted to each robotic application

Preserving the SENSKIN Technology

SENSKIN Modular incorporates the same patented three-dimensional capacitive sensing technology that underpins the SENSKIN family.

The solution continuously monitors the robot's surroundings and provides:

• Predictive embedded safety
• High-speed 3D human detection up to 200 mm
• Real-time robot motion adaptation
• Early collision avoidance
• Optional touch and pressure detection
• Continuous operation with fewer unnecessary stops
• Broad compatibility across robotic platforms

Performance for Industrial Robotics

Designed for demanding industrial environments, SENSKIN Modular combines fast response, high precision and scalable architecture.

Key performance features include:

• Approximately 10 ms response time
• Detection range up to 200 mm
• Sub-millimetre measurement accuracy
• Up to 128 sensing elements
• PL d / Category 3 READY safety architecture support
• Patented 3D capacitive sensing technology

Expanding Human-Robot Collaboration

By combining embedded intelligence, simplified deployment and scalable implementation, SENSKIN Modular opens new possibilities for safer and more natural collaboration between humans and robots.

The solution continuously perceives human presence around the robot, helping reduce unnecessary safety stops while maintaining productivity, operator confidence and operational continuity.

Expanding the SENSKIN Family

With the introduction of SENSKIN Modular, Fogale Sensors now offers two complementary solutions for embedded robotic safety:

• SENSKIN Integrated, developed for seamless integration into new robot designs.
• SENSKIN Modular, designed to retrofit existing robotic platforms with embedded adaptive safety.

Together, these solutions provide robot manufacturers, system integrators and end users with greater flexibility to deploy predictive human awareness across a broad range of industrial and collaborative robotics applications.

SENSKIN Modular represents another step toward intelligent robots capable of naturally perceiving and interacting with their human environment, supporting the next generation of collaborative and autonomous robotic systems.
